A Bayesian Belief Network (BBN) is a probabilistic graphical model in artificial intelligence that represents a set of variables and their conditional dependencies through a directed acyclic graph (DAG). Each node represents a random variable, while directed edges indicate conditional dependencies. The network is built from conditional probability tables (CPTs) that quantify the relationships between variables, allowing for robust probabilistic reasoning, prediction, and decision-making under uncertainty. By modeling complex interactions between variables, BBNs effectively handle uncertainty and facilitate analysis of interdependent events.

What is Bayesian Belief Network (BBN) in AI?

A Bayesian Belief Network (BBN) is a sophisticated computational model in artificial intelligence designed to manage probabilistic events and tackle problems characterized by uncertainty. Let’s dive deeper into its definition, components, and applications:

Definition: A Bayesian belief network, also referred to as a Bayes network, belief network, decision network, or Bayesian model, is a probabilistic graphical model that captures a set of variables and their conditional dependencies using a directed acyclic graph (DAG). This structure allows for the modeling of complex interactions between variables in a way that is both intuitive and mathematically rigorous.

Components:

Directed Acyclic Graph (DAG):

  • Nodes: Each node in the DAG represents a random variable, which can be discrete or continuous.
  • Edges: Directed edges between nodes signify conditional dependencies. If there is an edge from node A to node B, then A is a parent of B, and B is conditionally dependent on A.
  • Acyclic: The graph is acyclic, meaning it contains no cycles, which ensures that the relationships between variables are unidirectional and non-redundant.

Conditional Probability Tables (CPTs):

  • Each node is associated with a CPT that quantifies the effects of the parent nodes. The table specifies the probability of each possible state of the node, given each possible combination of the states of its parent nodes.
  • These tables are essential for performing probabilistic inference, allowing the network to update beliefs about unknown variables based on observed evidence.

Bayesian belief networks are indispensable tools in artificial intelligence, enabling the modeling of complex probabilistic relationships and supporting robust decision-making processes in uncertain environments. Their ability to integrate data and expert knowledge makes them versatile and powerful for a wide range of applications.

Example:

A Bayesian Network is composed of nodes and directed arcs (links), which together form a probabilistic graphical model. Each component of the network plays a crucial role in representing and analyzing the dependencies among random variables. Here's an enhanced description based on the provided diagram:

Nodes:

  • Each node in the graph corresponds to a random variable, which can be either continuous or discrete.
  • In the provided diagram, nodes A, B, C, and D represent these random variables.

Arcs (Directed Links):

  • Arcs, or directed arrows, indicate the causal relationships or conditional dependencies between the random variables.
  • These directed links connect pairs of nodes, signifying that one node directly influences the other.
  • The absence of a directed link between two nodes implies that those nodes are independent of each other.
Example of Directed Acyclic Graph (DAG)
  • Node A is connected to Node B and Node C by directed arrows, illustrating that Node A has a direct influence on both Node B and Node C.
  • Node D is connected to Node C, indicating a direct influence from Node D to Node C.
  • Node B:
    • In this context, Node A is referred to as the parent of Node B, as it has a direct influence on it.
  • Node C:
    • Node C is independent of Node A because there is no direct link connecting them.

Interpretation:

  • Parent and Child Relationship: If a node is connected to another node by a directed arrow, the node from which the arrow originates is called the parent, and the node to which it points is the child.
  • Independence: The lack of a direct link between nodes signifies that they do not directly influence each other, thus are considered independent.

Significance:

  • Causal Representation: The directed arcs effectively capture the causal relationships among variables, allowing for intuitive understanding and analysis.
  • Conditional Dependencies: By representing conditional dependencies, Bayesian networks facilitate accurate probabilistic reasoning and inference.

The Bayesian Network consists of two primary components:

  1. Causal Component
  2. Actual Numbers

Causal Component:

Each node within the Bayesian Network represents a random variable, and the directed arcs between them depict the causal relationships or conditional dependencies. These relationships help to understand how one variable directly influences another.

Actual Numbers:

Every node in the Bayesian Network is associated with a Conditional Probability Distribution (CPD), denoted as P(Xi | Parent(Xi)). This distribution quantifies the effect of the parent nodes on a given node, effectively capturing the probabilistic impact one variable has on another.

By incorporating these two components, Bayesian Networks provide a robust framework for modeling and analyzing complex systems with interdependent variables. This makes them invaluable for probabilistic reasoning, prediction, and decision-making under uncertainty.

A Bayesian Network relies on joint probability distribution and conditional probability. Let’s first understand the concept of joint probability distribution:

Joint Probability Distribution:

If we have variables ( x1, x2, x3, …, xn ), the probabilities of different combinations of these variables are known as the joint probability distribution.

The joint probability distribution can be expressed as:

P[x1, x2, x3, …, xn] = P[x1 | x2, x3, …, xn] · P[x2, x3, …, xn]

This can be further broken down into:

P[x1, x2, x3, …, xn] = P[x1 | x2, x3, …, xn] · P[x2 | x3, …, xn] … P[xn-1 | xn] · P[xn]

In general, for each variable ( Xi ), the equation can be written as:

P(Xi | Xi-1, …, X1) = P(Xi | Parents(Xi))

Explanation of Bayesian Network:

To illustrate a Bayesian Network, let's consider an example with a directed acyclic graph (DAG):

Example:

Harry installed a new burglar alarm at his home to detect burglaries. The alarm reliably detects burglaries but also responds to minor earthquakes. Harry has two neighbors, David and Sophia, who have agreed to inform Harry at work when they hear the alarm. David always calls Harry when he hears the alarm, but sometimes he gets confused with the phone ringing and calls mistakenly. On the other hand, Sophia enjoys listening to loud music, so she sometimes misses the alarm. Here, we want to compute the probability of a burglary alarm.

In this scenario:

  • Nodes: Represent events like burglary, earthquake, alarm, David calls, and Sophia calls.
  • Directed Arcs: Show the causal relationships between these events.

Using a Bayesian Network, we can analyze and compute the probability of a burglary alarm considering all these dependencies and conditional probabilities.

By understanding the joint probability distribution and constructing a Bayesian Network, we can effectively model and predict outcomes in complex systems with interdependent variables.

Problem:

Calculate the probability that the alarm has sounded, but there is neither a burglary nor an earthquake, and both David and Sophia called Harry.

Solution:

The Bayesian Network for this problem is illustrated below. In this network:

  • Burglary and Earthquake are parent nodes of the Alarm and directly affect the probability of the alarm going off.
  • David's Call and Sophia's Call depend on the probability of the alarm.

Our assumptions include:

  • We do not directly perceive the burglary or minor earthquake.
  • David and Sophia do not confer before calling Harry.

Each node has a Conditional Probability Table (CPT). The rows in the CPT must sum to 1, as they represent an exhaustive set of cases for the variable. For a boolean variable with k boolean parents, the CPT contains 2k probabilities. For example, with two parents, the CPT will have 4 probability values.

Events in the Network:

  • Burglary (B)
  • Earthquake (E)
  • Alarm (A)
  • David Calls (D)
  • Sophia Calls (S)

We can express the events in the problem statement as a probability: P[D, S, A, ¬B, ¬E].

Using the joint probability distribution, we rewrite the above probability statement:

P[D, S, A, ¬B, ¬E] = P[D | S, A, ¬B, ¬E] · P[S, A, ¬B, ¬E]

Breaking it down further:

P[D, S, A, ¬B, ¬E]

= P[D | S, A, ¬B, ¬E] · P[S | A, ¬B, ¬E] · P[A, ¬B, ¬E]
= P[D | A] · P[S | A, ¬B, ¬E] · P[A, ¬B, ¬E]
= P[D | A] · P[S | A] · P[A | ¬B, ¬E] · P[¬B, ¬E]
= P[D | A] · P[S | A] · P[A | ¬B, ¬E] · P[¬B | ¬E] · P[¬E]
Solution of Directed Acyclic Graph (DAG)

To find the desired probability, we follow these steps:

  1. Calculate P[D | A] - the probability that David calls given the alarm.
  2. Calculate P[S | A] - the probability that Sophia calls given the alarm.
  3. Calculate P[A | ¬B, ¬E] - the probability that the alarm goes off given no burglary and no earthquake.
  4. Calculate P[¬B | ¬E] - the probability of no burglary given no earthquake.
  5. Calculate P[¬E] - the probability of no earthquake.

By multiplying these probabilities, we can determine the overall probability that the alarm sounds, but there is neither a burglary nor an earthquake, and both David and Sophia call Harry.

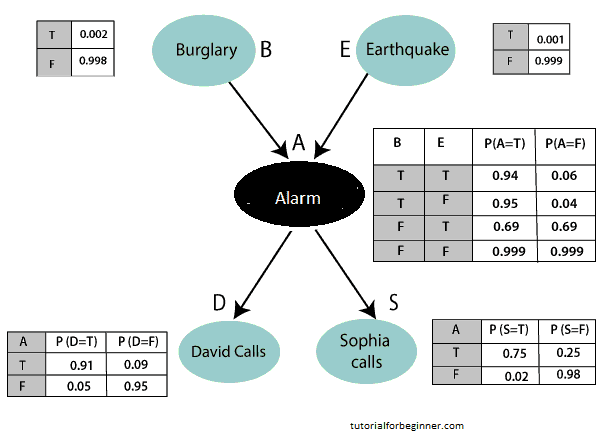

Bayesian Network Calculation Example:

Observed Probabilities:

  • P(B = True) = 0.002 (probability of burglary)
  • P(B = False) = 0.998 (probability of no burglary)
  • P(E = True) = 0.001 (probability of a minor earthquake)
  • P(E = False) = 0.999 (probability of no earthquake)

Conditional Probability Tables (CPTs):

Conditional Probability Table for Alarm (A):

The conditional probability of the alarm depends on burglary and earthquake:

B E P(A = True) P(A = False)
True True 0.94 0.06
True False 0.95 0.04
False True 0.31 0.69
False False 0.001 0.999

Conditional Probability Table for David Calls (D):

The probability that David will call depends on the probability of the alarm:

A P(D = True) P(D = False)
True 0.91 0.09
False 0.05 0.95

Conditional Probability Table for Sophia Calls (S):

The probability that Sophia will call depends on the alarm:

A P(S = True) P(S = False)
True 0.75 0.25
False 0.02 0.98

Joint Probability Distribution:

Using the formula for joint distribution, we can write the problem statement in terms of probability distribution:

P(S, D, A, ¬B, ¬E) = P(S | A) * P(D | A) * P(A | ¬B, ¬E) * P(¬B) * P(¬E)

Plugging in the values:

P(S, D, A, ¬B, ¬E) = 0.75 * 0.91 * 0.001 * 0.998 * 0.999

Calculating the result:

P(S, D, A, ¬B, ¬E) = 0.00068045

Hence, a Bayesian network can answer any query about the domain by using joint distribution.

Semantics of Bayesian Network:

There are two primary ways to understand the semantics of a Bayesian network:

  1. As a Representation of the Joint Probability Distribution:
    • This approach is useful for constructing the network.
    • It helps in understanding how the network represents the combined probabilities of different variables.
  2. As an Encoding of Conditional Independence Statements:
    • This approach aids in designing inference procedures.
    • It helps in understanding how the network encodes the dependencies and independencies among variables.

By leveraging these two perspectives, we can effectively utilize Bayesian networks for probabilistic reasoning and decision-making.
